880 Series Source Projectors
Product Code : 01
Product Name : 880 Series Source Projectors

Details :


Technical Operating


STEP 1 Connecting the Source Guide TubeSTEP 2 Connecting the Remote Control CableSTEP 3 Projecting and Retracting the Source AssemblySTEP 4 Dismantling Equipment

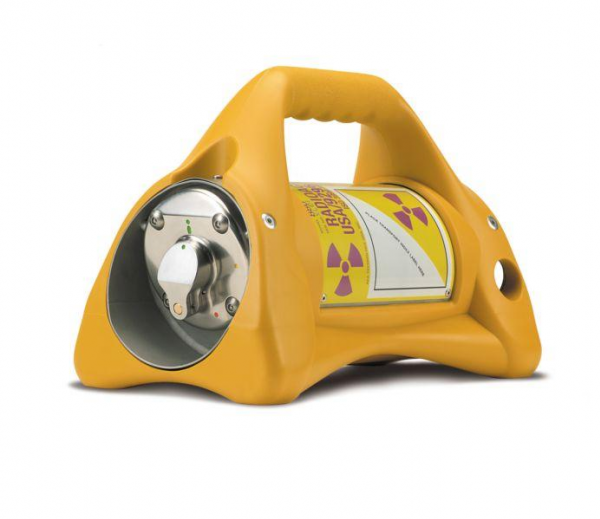

SENTINEL Model 880 source projectors are portable, lightweight and compactindustrial radiographic exposure devices. The exposure device body consists of a titanium ‘S’ tube and cast Depleted Uranium (DU) shield contained within a 300 series stainless steel tube with stainless steel discs welded at each endforming a cylinder shaped housing. The discs are recessed to provide protection for the rear mounted locking mechanism and front mounted outlet port.

The horizontally oriented design allows the locking mechanism, source assembly connector and outlet port to be easily operated, simplifying the connection of source guide tubes and projection sheaths.
