Personal Dosimeter PED
Product Name : Personal Dosimeter PED
Details :

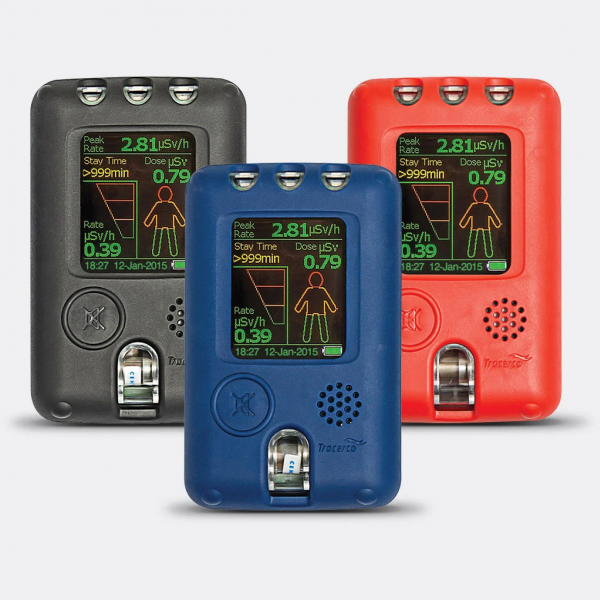

Tracerco™ Personal Electronic Dosimeter (PED) - A solution for every situation
PED family specification:
- Radiation detected: X-rays and gamma rays in range 33 keV to 1332 keV.
- Detector: Single energy compensated Geiger Muller tube.
- Dose rate range: Bar graph display 0-100 mSv/h. Digital numeric display 0-100 mSv/h.
- Accumulated dose range: Dose “Man” display 0-10 Sv. Digital numeric display 0-10 Sv.
- Peak radiation dose rate: Digital numeric display 0-100 mSv/h.
- Battery: Rechargeable lithium ion. 300 hours run-time typical. Recharge via standard 5V micro USB connection. Can be charged from PC.
- Memory: 125,000 data point capacity. Serial non-volatile memory.10 year data retention.
- Units: Sieverts or Rem (may be selected in DoseVisionTM software).
- Operating temperature range: -20oC to 50oC.
- Ingress protection rating: IP67 (dust tight and can withstand immersion in water at depth of 1m).
- Hazardus area certification (PED-IS only): ATEX EU directive 94/9/EC Safe for use in Explosive (Atmosphere Zones 0, 1, and 2 ATEX Coding Ex II 1G Equipment code Ex ia IIC T4 Ga (-20°C ATEX Certificate No Baseefa 11ATEX0045 IECEx Certificate No. IECEx BAS 11.0027. FM approved for Class I Div I Groups ABCD Ta = 50°C and Class I Zone 0 IIC T4.
- Low battery indication: On 8 hours available life left.
- Humidity range: Up to 95%.
- Case material: Shock, vibration and drop resistant polymers. PED-IS: Additional antistatic surface properties.
- Standard compliance: BS EN 61526:2013 -“Radiation protection instrumentation -Measurement of personal dose equivalents Hp(10) and Hp(0.07) for X, gamma, neutron and beta radiations - Direct reading personal dose equivalent meters” EN55011:2009+A1:2010-“Industrial, scientific and medical equipment. Radiofrequency disturbance characteristics. Limits and methods of measurement”.
The PED is suitable for:
• Emergency Services & First Responders
(CBRNe)
• Medical & Life Sciences
• Nuclear
• NDT
• Industrial
• Oil and Gas Safe Zones.
